- GNY 活塞杆专用液压密封件 SAKAGAMI 阪上进口液压密封件 手机:13602589346
订购致电:0755-28545652 手机:13602589346

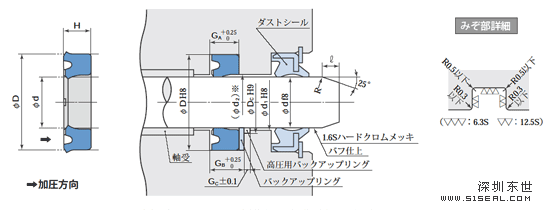

| 型号明细 | 密封件的公称尺寸及腔体尺寸(単位：mm） | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 标准 （RN919） |
标准 （PT114） |
高压 （PA101） |
d | D | H | GA | GB | GC | DC | d1(参考) |  |
| GNY- 18 | *TC-GNY-18 | *PE-GNY-18 | 18 | 26 | 5 | 6 | 7.5 | 2 | 21 | 18.5 | 3.5 |
| *GNY- 20 | *TC-GNY-20 | *PE-GNY-20 | 20 | 28 | 5 | 6 | 7.5 | 2 | 23 | 20.5 | 3.5 |
| GNY- 22 | *TC-GNY-22 | *PE-GNY-22 | 22 | 30 | 5 | 6 | 7.5 | 2 | 25 | 22.5 | 3.5 |
| GNY- 25 | *TC-GNY-25 | *PE-GNY-25 | 25 | 33 | 5 | 6 | 7.5 | 2 | 28 | 25.5 | 3.5 |
| GNY- 28 | *TC-GNY-28 | *PE-GNY-28 | 28 | 36 | 5 | 6 | 7.5 | 2 | 31 | 28.5 | 3.5 |
| GNY- 30 | *TC-GNY-30 | *PE-GNY-30 | 30 | 40 | 6 | 7 | 9 | 2.5 | 34 | 30.5 | 4 |
| *GNY- 32 | *TC-GNY-32 | *PE-GNY-32 | 32 | 42 | 6 | 7 | 9 | 2.5 | 36 | 32.5 | 4 |
| GNY- 35 | *TC-GNY-35 | *PE-GNY-35 | 35 | 45 | 6 | 7 | 9 | 2.5 | 39 | 35.5 | 4 |
| *GNY- 36 | *TC-GNY-36 | *PE-GNY-36 | 36 | 46 | 6 | 7 | 9 | 2.5 | 40 | 36.5 | 4 |
| GNY- 40 | *TC-GNY-40 | *PE-GNY-40 | 40 | 50 | 6 | 7 | 9 | 2.5 | 44 | 40.5 | 4 |
| GNY- 45 | *TC-GNY-45 | *PE-GNY-45 | 45 | 55 | 6 | 7 | 9 | 2.5 | 49 | 45.5 | 4 |
| GNY- 50 | *TC-GNY-50 | *PE-GNY-50 | 50 | 63 | 8 | 9 | 11.5 | 3 | 56 | 50.5 | 5 |
| GNY- 55 | *TC-GNY-55 | *PE-GNY-55 | 55 | 68 | 8 | 9 | 11.5 | 3 | 61 | 55.6 | 5 |
| GNY- 56 | *TC-GNY-56 | *PE-GNY-56 | 56 | 69 | 8 | 9 | 11.5 | 3 | 62 | 56.6 | 5 |
| GNY- 60 | *TC-GNY-60 | *PE-GNY-60 | 60 | 73 | 8 | 9 | 11.5 | 3 | 66 | 60.6 | 5 |
| *GNY- 63 | *TC-GNY-63 | *PE-GNY-63 | 63 | 76 | 8 | 9 | 11.5 | 3 | 69 | 63.6 | 5 |
| GNY- 65 | *TC-GNY-65 | *PE-GNY-65 | 65 | 78 | 8 | 9 | 11.5 | 3 | 71 | 65.6 | 5 |
| GNY- 70 | *TC-GNY-70 | *PE-GNY-70 | 70 | 85 | 9 | 10 | 12.5 | 3 | 76 | 70.6 | 5 |
| GNY- 75 | *TC-GNY-75 | *PE-GNY-75 | 75 | 90 | 9 | 10 | 12.5 | 3 | 81 | 75.6 | 5 |
| GNY- 80 | *TC-GNY-80 | *PE-GNY-80 | 80 | 95 | 9 | 10 | 12.5 | 3 | 86 | 80.6 | 5 |
| GNY- 90 | *TC-GNY-90 | *PE-GNY-90 | 90 | 105 | 9 | 10 | 12.5 | 3 | 96 | 90.6 | 5 |
| *GNY-100 | *TC-GNY-100 | *PE-GNY-100 | 100 | 120 | 12 | 13 | 16 | 3.5 | 107 | 100.6 | 6 |
| *GNY-110 | *TC-GNY-110 | *PE-GNY-110 | 110 | 130 | 12 | 13 | 16 | 3.5 | 117 | 110.6 | 6 |
| GNY-125 | *TC-GNY-125 | *PE-GNY-125 | 125 | 145 | 12 | 13 | 16 | 3.5 | 132 | 125.7 | 6 |
| *GNY-140 | *TC-GNY-140 | *PE-GNY-140 | 140 | 160 | 12 | 13 | 16 | 3.5 | 147 | 140.7 | 6 |
| *GNY-160 | *TC-GNY-160 | *PE-GNY-160 | 160 | 180 | 12 | 13 | 16 | 3.5 | 167 | 160.7 | 6 |
| *GNY-180 | *TC-GNY-180 | *PE-GNY-180 | 180 | 200 | 12 | 13 | 16 | 3.5 | 187 | 180.7 | 6 |
