- HSD 活塞专用液压密封件 SAKAGAMI 阪上 液压 密封件 电话:13602589346
订购致电:0755-28545652 手机:13602589346

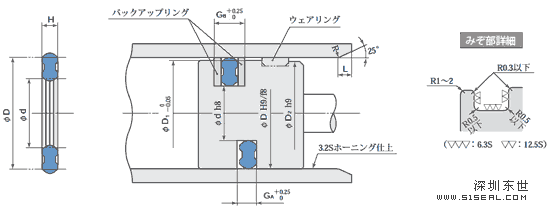

| 型号明细 | 密封件的公称尺寸及腔体尺寸 (単位：mm） | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 标准（RN906) | 适用（PT111) | D | d | H | GA | GB | D1 | D2 | L |
| *HSD-20 | *TCS-20×14 | 20 | 14 | 1.9 | 2.4 | 4.4 | 19.5 | 19 | 1.5 |
| *HSD-25 | *TCS-25×17 | 25 | 17 | 2.6 | 3.2 | 5.2 | 24.5 | 24 | 2 |
| *HSD-30 | *TCS-30×22 | 30 | 22 | 2.6 | 3.2 | 5.2 | 29.5 | 29 | 2 |
| *HSD-32 | *TCS-32×24 | 32 | 24 | 2.6 | 3.2 | 5.2 | 31.5 | 30.5 | 2 |
| *HSD-35 | *TCS-35×27 | 35 | 27 | 2.6 | 3.2 | 5.2 | 34.5 | 33.5 | 2 |
| *HSD-40 | TCS-40×32 | 40 | 32 | 2.6 | 3.2 | 5.2 | 39.5 | 38.5 | 2 |
| *HSD-40A | TCS-40×30 | 40 | 30 | 3.4 | 4 | 7 | 39.5 | 38.5 | 2.5 |
| *HSD-45 | TCS-45×35 | 45 | 35 | 3.4 | 4 | 7 | 44.5 | 43.5 | 2.5 |
| *HSD-50 | TCS-50×40 | 50 | 40 | 3.4 | 4 | 7 | 49.5 | 48.5 | 2.5 |
| *HSD-55 | TCS-55×45 | 55 | 45 | 3.4 | 4 | 7 | 54.4 | 53 | 2.5 |
| *HSD-60 | TCS-60×50 | 60 | 50 | 3.4 | 4 | 7 | 59.4 | 58 | 2.5 |
| *HSD-63 | TCS-63×53 | 63 | 53 | 3.4 | 4 | 7 | 62.4 | 61 | 2.5 |
| *HSD-65 | TCS-65×55 | 65 | 55 | 3.4 | 4 | 7 | 64.4 | 63 | 2.5 |
| *HSD-70 | *TCS-70×55 | 70 | 55 | 5.2 | 6 | 10 | 69.4 | 68 | 3 |
| *HSD-80 | *TCS-80×65 | 80 | 65 | 5.2 | 6 | 10 | 79.4 | 78 | 3 |
| *HSD-90 | *TCS-90×75 | 90 | 75 | 5.2 | 6 | 10 | 89.4 | 88 | 3 |
| *HSD-100 | TCS-100×85 | 100 | 85 | 5.2 | 6 | 10 | 99.4 | 98 | 3 |
