- SDR 防尘密封件 SAKAGAMI 阪上 液压 密封件 电话:13602589346
订购致电:0755-28545652 手机:13602589346

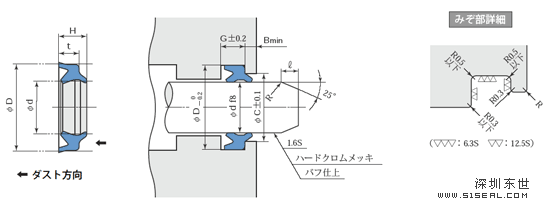

| 型号明细 | 密封件的公称尺寸及腔体尺寸 （単位：mm） |
||||||||
|---|---|---|---|---|---|---|---|---|---|
| SDR | |||||||||
| 标准 （RN 906） |
耐热用 （RF 905） |
耐寒用 （RN 903） |
d | D | H | t | G | C | B |
| SDR- 0012001 N906 | 12 | 20 | 6 | 4.5 | 5 | 16.3 | 2 | ||
| *SDR-12.5 | 12.5 | 20.5 | 6 | 4.5 | 5 | 16.8 | 2 | ||
| SDR-14 | 14 | 22 | 6 | 4.5 | 5 | 18.3 | 2 | ||
| SDR-16 | SDR-16F | 16 | 24 | 6 | 4.5 | 5 | 20.3 | 2 | |
| SDR-18 | SDR-18F | 18 | 26 | 6 | 4.5 | 5 | 22.3 | 2 | |
| *SDR- 0019001 N906 | 19 | 27 | 6 | 4.5 | 5 | 23.3 | 2 | ||
| SDR-20 | SDR-20F | 20 | 28 | 6 | 4.5 | 5 | 24.3 | 2 | |
| SDR-22 | *SDR-22F | 22 | 30 | 6 | 4.5 | 5 | 26.3 | 2 | |
| SDR-22.4 | SDR-22.4F | *SDR-22.4N | 22.4 | 30.4 | 6 | 4.5 | 5 | 26.7 | 2 |
| SDR-25 | SDR-25F | *SDR-25N | 25 | 33 | 6 | 4.5 | 5 | 29.3 | 2 |
| *SDR-0025404 N906 | *SDR- 0025402 N903 |
25.4 | 33.4 | 6 | 4.5 | 5 | 29.7 | 2 | |
| *SDR- 0026001 N906 | 26 | 34 | 6 | 4.5 | 5 | 30.3 | 2 | ||
| SDR-28 | SDR-28F | 28 | 36 | 6 | 4.5 | 5 | 32.3 | 2 | |
| SDR-30 | SDR-30F | 30 | 38 | 6.5 | 5 | 6 | 34 | 2 | |
| SDR-31.5 | *SDR-31.5F | 31.5 | 39.5 | 6.5 | 5 | 6 | 35.5 | 2 | |
| SDR-32 | 32 | 40 | 6.5 | 5 | 6 | 36 | 2 | ||
| SDR-35 | SDR-35F | 35 | 43 | 6.5 | 5 | 6 | 39 | 2 | |
| SDR-35.5 | SDR-35.5F | *SDR-35.5N | 35.5 | 43.5 | 6.5 | 5 | 6 | 39.5 | 2 |
| SDR-36 | *SDR-36F | 36 | 44 | 6.5 | 5 | 6 | 40 | 2 | |
| *SDR- 0038001 N906 |
38 | 46 | 6.5 | 5 | 6 | 42 | 2 | ||
| SDR-40 | SDR-40F | *SDR-40N | 40 | 48 | 6.5 | 5 | 6 | 44 | 2 |
| SDR-45 | SDR-45F | 45 | 53 | 6.5 | 5 | 6 | 49 | 2 | |
| SDR-50 | SDR-50F | *SDR-50N | 50 | 58 | 6.5 | 5 | 6 | 54 | 2 |
| SDR-53 | *SDR-53F | 53 | 61 | 6.5 | 5 | 6 | 57 | 2 | |
| SDR-55 | *SDR-55F | 55 | 63 | 6.5 | 5 | 6 | 59 | 2 | |
| SDR-56 | SDR-56F | 56 | 64 | 6.5 | 5 | 6 | 60 | 2 | |
| SDR-60 | SDR-60F | 60 | 68 | 6.5 | 5 | 6 | 64 | 2 | |
| SDR-63 | *SDR-63F | *SDR-63N | 63 | 71 | 6.5 | 5 | 6 | 67 | 2 |
| SDR-65 | *SDR-65F | 65 | 73 | 6.5 | 5 | 6 | 69 | 2 | |
| *SDR-67 | *SDR-67F | *SDR-67N | 67 | 75 | 6.5 | 5 | 6 | 71 | 2 |
| SDR-70 | SDR-70F | 70 | 80 | 8 | 6 | 7 | 75 | 3 | |
| SDR-71 | *SDR-71F | *SDR-71N | 71 | 81 | 8 | 6 | 7 | 76 | 3 |
| SDR-75 | *SDR-75F | *SDR-75N | 75 | 85 | 8 | 6 | 7 | 80 | 3 |
| SDR-80 | SDR-80F | 80 | 90 | 8 | 6 | 7 | 85 | 3 | |
| SDR-85 | *SDR-85F | *SDR-85N | 85 | 95 | 8 | 6 | 7 | 90 | 3 |
| SDR-90 | SDR-90F | 90 | 100 | 8 | 6 | 7 | 95 | 3 | |
| SDR-95 | *SDR-95F | *SDR-95N | 95 | 105 | 8 | 6 | 7 | 100 | 3 |
| SDR-100 | SDR-100F | *SDR-100N | 100 | 110 | 8 | 6 | 7 | 105 | 3 |
| *SDR- 0105002 N906 |
105 | 115 | 8 | 6 | 7 | 110 | 3 | ||
| SDR-106 | *SDR-106F | 106 | 116 | 8 | 6 | 7 | 111 | 3 | |
| SDR- 0110002 N906 |
110 | 120 | 8 | 6 | 7 | 115 | 3 | ||
| SDR-112 | *SDR-112F | 112 | 122 | 8 | 6 | 7 | 117 | 3 | |
| *SDR- 0115002 N906 |
115 | 125 | 8 | 6 | 7 | 120 | 3 | ||
| *SDR-118 | *SDR-118F | *SDR-118N | 118 | 128 | 8 | 6 | 7 | 123 | 3 |
| *SDR- 0120001 N906 |
120 | 133 | 9.5 | 7 | 8 | 127 | 3 | ||
| SDR-125 | *SDR-125F | 125 | 138 | 9.5 | 7 | 8 | 132 | 3 | |
| *SDR- 0127003 N906 |
127 | 140 | 9.5 | 7 | 8 | 134 | 3 | ||
| *SDR-132 | *SDR-132F | 132 | 145 | 9.5 | 7 | 8 | 139 | 3 | |
| SDR-140 | *SDR-140F | 140 | 153 | 9.5 | 7 | 8 | 147 | 3 | |
| *SDR-145 | *SDR-145F | 145 | 158 | 9.5 | 7 | 8 | 152 | 3 | |
| SDR-150 | *SDR-150F | 150 | 163 | 9.5 | 7 | 8 | 157 | 3 | |
| *SDR- 0153001 N906 |
153 | 166 | 9.5 | 7 | 8 | 160 | 3 | ||
| *SDR- 0155001 N906 |
155 | 168 | 9.5 | 7 | 8 | 162 | 3 | ||
| SDR-160 | *SDR-160F | 160 | 173 | 9.5 | 7 | 8 | 167 | 3 | |
| *SDR-160A | *SDR-160AF | 160 | 174 | 9.5 | 7 | 8 | 167 | 3 | |
| SDR-165 | *SDR-165F | 165 | 178 | 9.5 | 7 | 8 | 172 | 3 | |
| *SDR- 0170001 N906 |
170 | 183 | 9.5 | 7 | 8 | 177 | 3 | ||
| *SDR-175 | *SDR-175F | 175 | 188 | 9.5 | 7 | 8 | 182 | 3 | |
| SDR-180 | *SDR-180F | 180 | 193 | 9.5 | 7 | 8 | 187 | 3 | |
| *SDR-180A | *SDR-180AF | 180 | 194 | 9.5 | 7 | 8 | 187 | 3 | |
| *SDR- 0190001 N906 |
190 | 203 | 9.5 | 7 | 8 | 197 | 3 | ||
| *SDR- 0195001 N906 |
195 | 207 | 9.5 | 7 | 8 | 201.5 | 3 | ||
| SDR-200 | *SDR-200F | 200 | 213 | 9.5 | 7 | 8 | 207 | 3 | |
| *SDR- 0205002 N906 |
*SDR- 0205001 F905 |
205 | 218 | 9.5 | 7 | 8 | 212 | 3 | |
| SDR- 0210002 N906 |
*SDR- 0210001 N903 |
210 | 223 | 9.5 | 7 | 8 | 217 | 3 | |
| *SDR- 0215001 N906 |
215 | 228 | 9.5 | 7 | 8 | 222 | 3 | ||
| SDR-224 | *SDR-224F | 224 | 237 | 9.5 | 7 | 8 | 231 | 3 | |
| *SDR- 0225001 N906 |
225 | 238 | 9.5 | 7 | 8 | 232 | 3 | ||
| *SDR- 0230001 N906 |
230 | 243 | 9.5 | 7 | 8 | 237 | 3 | ||
| SDR-250 | *SDR-250F | 250 | 266 | 13 | 10 | 11 | 258 | 4 | |
| SDR-280 | *SDR-280F | 280 | 296 | 13 | 10 | 11 | 288 | 4 | |
| *SDR- 0285001 N906 |
285 | 301 | 13 | 10 | 11 | 293 | 4 | ||
| *SDR- 0290001 N906 |
290 | 306 | 13 | 10 | 11 | 298 | 4 | ||
| *SDR- 0295001 N906 |
295 | 311 | 13 | 10 | 11 | 303 | 4 | ||
| *SDR- 0300002 N906 |
300 | 316 | 13 | 10 | 11 | 308 | 4 | ||
| *SDR-315 | 315 | 331 | 13 | 10 | 11 | 323 | 4 | ||
| *SDR- 0320001 N906 |
320 | 336 | 13 | 10 | 11 | 328 | 4 | ||
| *SDR- 0335001 N906 |
335 | 351 | 13 | 10 | 11 | 343 | 4 | ||
| *SDR-355 | 355 | 371 | 13 | 10 | 11 | 363 | 4 | ||
| *SDR- 0360002 N906 |
360 | 380 | 13 | 10 | 11 | 368 | 4 | ||
| *SDR- 0400001 N906 |
400 | 416 | 13 | 10 | 11 | 408 | 4 | ||
| *SDR- 0415001 N906 |
415 | 435 | 13 | 10 | 11 | 423 | 4 | ||
| *SDR- 0420001 N906 |
420 | 436 | 13 | 10 | 11 | 428 | 4 | ||
| *SDR-450 | 450 | 466 | 13 | 10 | 11 | 458 | 4 | ||
| *SDR- 0480001 N906 |
480 | 496 | 13 | 10 | 11 | 488 | 4 | ||
| *SDR- 0500001 N906 |
500 | 520 | 15.5 | 11.5 | 12.5 | 510 | 5 | ||
| *SDR- 0505001 N906 |
505 | 521 | 13 | 10 | 11 | 513 | 4 | ||
| *SDR- 0508001 N906 |
508 | 528 | 16 | 12 | 13 | 518 | 5 | ||
| *SDR- 0600001 N906 |
600 | 616 | 13 | 10 | 11 | 608 | 4 | ||
