| 型号明细 | 互换SCB |

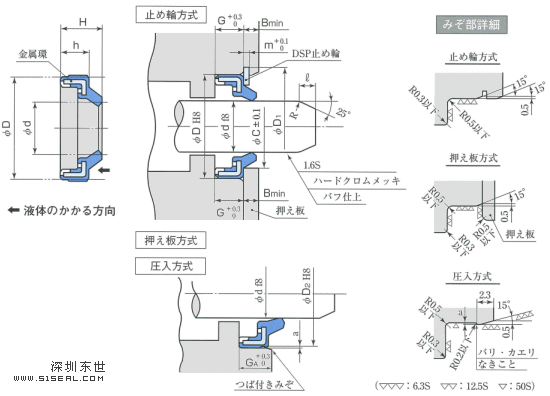

密封件的公称尺寸及腔体尺寸（単位：mm） | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 标准 （RN819） |
（RF 903） |
挡圈 | d | D | H | h | G | B | D1 | D2 | m | C |  |
|
| SDB-8 | *SDB-8F | *DSP-8 | SCB-8 | 8 | 18 | 7.5 | 4.8 | 5 | 3.5 | 18.8±0.1 | 17.8 | 0.7 | 14.9 | 2 |
| SDB-10 | SDB-10F | *DSP-10 | SCB-10 | 10 | 20 | 7.5 | 4.8 | 5 | 3.5 | 21 ±0.1 | 19.8 | 0.7 | 16.9 | 2 |
| SDB-12 | SDB-12F | *DSP-12 | *SCB-0012001N807 | 12 | 22 | 7.5 | 4.8 | 5 | 3.5 | 23 ±0.1 | 21.8 | 0.7 | 18.9 | 2 |
| SDB-14 | SDB-14F | *DSP-14 | SCB-14 | 14 | 24 | 7.5 | 4.8 | 5 | 3.5 | 25 ±0.1 | 23.8 | 0.7 | 20.9 | 2 |
| SDB-16 | SDB-16F | *DSP-16 | SCB-16 | 16 | 26 | 7.5 | 4.8 | 5 | 3.5 | 27 ±0.1 | 25.8 | 0.7 | 22.9 | 2 |
| SDB-18 | *SDB-18F | *DSP-18 | SCB-18 | 18 | 30 | 9 | 5.8 | 6 | 4.5 | 31.5±0.1 | 29.8 | 0.8 | 26.3 | 2 |
| SDB-20 | SDB-20F | *DSP-20 | SCB-20 | 20 | 32 | 9 | 5.8 | 6 | 4.5 | 33.5±0.1 | 31.8 | 0.8 | 28.3 | 2 |
| SDB-22.4 | SDB-22.4F | *DSP-22.4 | SCB-22.4 | 22.4 | 34.4 | 9 | 5.8 | 6 | 4.5 | 35.9±0.1 | 34.2 | 0.8 | 30.7 | 2 |
| SDB-25 | SDB-25F | *DSP-25 | SCB-25 | 25 | 37 | 9 | 5.8 | 6 | 4.5 | 38.5±0.1 | 36.8 | 0.8 | 33.3 | 2 |
| SDB-28 | *SDB-28F | *DSP-28 | SCB-28 | 28 | 40 | 9 | 5.8 | 6 | 4.5 | 41.5±0.1 | 39.8 | 0.8 | 36.3 | 2 |
| SDB-30 | SDB-30F | *DSP-30 | SCB-30 | 30 | 42 | 9 | 5.8 | 6 | 4.5 | 43.5±0.1 | 41.8 | 0.8 | 38.3 | 2 |
| SDB-32 | SDB-32F | *DSP-32 | SCB-32 | 32 | 44 | 10 | 6.8 | 7 | 4.5 | 45.5±0.1 | 43.8 | 0.8 | 40.3 | 3 |
| SDB-35.5 | SDB-35.5F | *DSP-35.5 | SCB-35.5 | 35.5 | 47.5 | 10 | 6.8 | 7 | 4.5 | 49.5±0.15 | 47.3 | 1.0 | 43.8 | 3 |
| SDB-40 | SDB-40F | *DSP-40 | SCB-40 | 40 | 52 | 10 | 6.8 | 7 | 4.5 | 54 ±0.15 | 51.8 | 1.0 | 48.3 | 3 |
| SDB-45 | SDB-45F | *DSP-45 | SCB-45 | 45 | 57 | 10 | 6.8 | 7 | 4.5 | 59 ±0.15 | 56.8 | 1.0 | 53.3 | 3 |
| *SDB-50 | *SDB-50F | *DSP-50 | SCB-50 | 50 | 62 | 10 | 6.8 | 7 | 4.5 | 64 ±0.15 | 61.8 | 1.0 | 58.3 | 3 |
| SDB-56 | *SDB-56F | *DSP-56 | SCB-56 | 56 | 70 | 11 | 7.7 | 8 | 5 | 72.5±0.15 | 69.6 | 1.1 | 65.5 | 3 |
