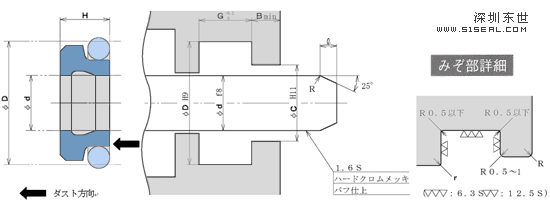

| 型号明细 | 密封件的公称尺寸及腔体尺寸（単位：mm） | ||||||
|---|---|---|---|---|---|---|---|
| 标准(PT165) | d | D | H | G | C | B | r |
| *SMD-16 | 16 | 22.8 | 4.7 | 5 | 17.5 | 2 | 0.8 |
| *SMD-18 | 18 | 24.8 | 4.7 | 5 | 19.5 | 2 | 0.8 |
| *SMD-20 | 20 | 26.8 | 4.7 | 5 | 21.5 | 2 | 0.8 |
| *SMD-22 | 22 | 28.8 | 4.7 | 5 | 23.5 | 2 | 0.8 |
| *SMD-25 | 25 | 31.8 | 4.7 | 5 | 26.5 | 2 | 0.8 |
| *SMD-28 | 28 | 34.8 | 4.7 | 5 | 29.5 | 2 | 0.8 |
| *SMD-30 | 30 | 36.8 | 4.7 | 5 | 31.5 | 2 | 0.8 |
| *SMD-35 | 35 | 41.8 | 4.7 | 5 | 36.5 | 2 | 0.8 |
| *SMD-36 | 36 | 42.8 | 4.7 | 5 | 37.5 | 2 | 0.8 |
| *SMD-40 | 40 | 46.8 | 4.7 | 5 | 41.5 | 2 | 0.8 |
| *SMD-45 | 45 | 51.8 | 4.7 | 5 | 46.5 | 2 | 0.8 |
| *SMD-50 | 50 | 56.8 | 4.7 | 5 | 51.5 | 2 | 0.8 |
| *SMD-55 | 55 | 61.8 | 4.7 | 5 | 56.5 | 2 | 0.8 |
| *SMD-56 | 56 | 62.8 | 4.7 | 5 | 57.5 | 2 | 0.8 |
| *SMD-60 | 60 | 66.8 | 4.7 | 5 | 61.5 | 2 | 0.8 |
| *SMD-63 | 63 | 69.8 | 4.7 | 5 | 64.5 | 2 | 0.8 |
| *SMD-65 | 65 | 71.8 | 4.7 | 5 | 66.5 | 2 | 0.8 |
| *SMD-70 | 70 | 78.8 | 6 | 6.3 | 71.5 | 3 | 1 |
| *SMD-75 | 75 | 83.8 | 6 | 6.3 | 76.5 | 3 | 1 |
| *SMD-80 | 80 | 88.8 | 6 | 6.3 | 81.5 | 3 | 1 |
| *SMD-85 | 85 | 93.8 | 6 | 6.3 | 86.5 | 3 | 1 |
| *SMD-90 | 90 | 98.8 | 6 | 6.3 | 91.5 | 3 | 1 |
| *SMD-100 | 100 | 108.8 | 6 | 6.3 | 101.5 | 3 | 1 |
| *SMD-125 | 125 | 133.8 | 6 | 6.3 | 126.5 | 3 | 1 |
| *SMD-140 | 140 | 148.8 | 6 | 6.3 | 141.5 | 3 | 1 |
