- SNY 活塞杆专用液压密封件 SAKAGAMI 阪上 液压 密封件 0755-28545652
订购致电:0755-28545652 手机:13602589346

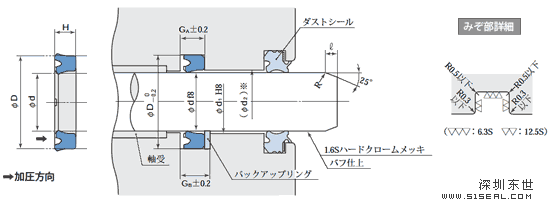

| 型号明细 | 密封件的公称尺寸及腔体尺寸 (単位：mm） | |||||||
|---|---|---|---|---|---|---|---|---|
| 标准 （RN809） |
併用バック （PT111） |
d | D | H | GA | GB | d1(参考) |  |
| *(T)SNY-14 | *TCS-22×14 | 14 | 22 | 5 | 5.7 | 6.7 | 14.4 | 2.5 |
| *(T)SNY-18 | *TCS-26×18 | 18 | 26 | 5 | 5.7 | 6.7 | 18.4 | 2.5 |
| *(T)SNY-20 | *TCS-28×20 | 20 | 28 | 5 | 5.7 | 6.7 | 20.4 | 2.5 |
| *(T)SNY-25 | TCS-33×25 | 25 | 33 | 5 | 5.7 | 6.7 | 25.4 | 2.5 |
| *(T)SNY-28 | TCS-35.5×28 | 28 | 35.5 | 5 | 5.7 | 6.7 | 28.4 | 2.5 |
| *(T)SNY-30 | TCS-40×30 | 30 | 40 | 6 | 7 | 8.5 | 30.5 | 3 |
| *(T)SNY-31.5 | *TCS-41.5×31.5 | 31.5 | 41.5 | 6 | 7 | 8.5 | 32 | 3 |
| *(T)SNY-35 | TCS-45×35 | 35 | 45 | 6 | 7 | 8.5 | 35.5 | 3 |
| *(T)SNY-35.5 | *TCS-45×35.5 | 35.5 | 45 | 6 | 7 | 8.5 | 36 | 3 |
| *(T)SNY-40 | TCS-50×40 | 40 | 50 | 6 | 7 | 8.5 | 40.5 | 3 |
| *(T)SNY-45 | TCS-55×45 | 45 | 55 | 6 | 7 | 8.5 | 45.5 | 3 |
| *(T)SNY-45A | *TCS-56×45 | 45 | 56 | 7 | 8 | 9.5 | 45.5 | 3 |
| *(T)SNY-50 | TCS-60×50 | 50 | 60 | 6 | 7 | 8.5 | 50.5 | 3 |
| *(T)SNY-55 | TCS-65×55 | 55 | 65 | 6 | 7 | 8.5 | 55.6 | 3 |
| *(T)SNY-56 | TCS-66×56 | 56 | 66 | 6 | 7 | 8.5 | 56.6 | 3 |
| *(T)SNY-60 | *TCS-70×60 | 60 | 70 | 6 | 7 | 8.5 | 60.6 | 3 |
| *(T)SNY-60A | *TCS-71×60 | 60 | 71 | 7 | 8 | 9.5 | 60.6 | 3 |
| *(T)SNY-63 | *TCS-73×63 | 63 | 73 | 6 | 7 | 8.5 | 63.6 | 3 |
| *(T)SNY-65 | *TCS-75×65 | 65 | 75 | 6 | 7 | 8.5 | 65.6 | 3 |
| *(T)SNY-70A | *TCS-85×70 | 70 | 85 | 9 | 10 | 12 | 70.6 | 4 |
| *(T)SNY-70C | TCS-80×70 | 70 | 80 | 6 | 7 | 8.5 | 70.6 | 4 |
| *(T)SNY-75 | TCS-85×75 | 75 | 85 | 6 | 7 | 8.5 | 75.6 | 4 |
| *(T)SNY-75A | *TCS-90×75 | 75 | 90 | 9 | 10 | 12 | 75.6 | 4 |
| *(T)SNY-80A | *TCS-95×80 | 80 | 95 | 9 | 10 | 12 | 80.6 | 4 |
| *(T)SNY-80C | *TCS-90×80 | 80 | 90 | 6 | 7 | 8.5 | 80.6 | 4 |
| *(T)SNY-85 | TCS-100×85 | 85 | 100 | 9 | 10 | 12 | 85.6 | 4 |
| *(T)SNY-90 | *TCS-105×90 | 90 | 105 | 9 | 10 | 12 | 90.6 | 4 |
| *(T)SNY-95 | *TCS-110×95 | 95 | 110 | 9 | 10 | 12 | 95.6 | 4 |
| *(T)SNY-100 | *TCS-115×100 | 100 | 115 | 9 | 10 | 12 | 100.6 | 4 |
| *(T)SNY-105 | *TCS-120×105 | 105 | 120 | 9 | 10 | 12 | 105.6 | 4 |
| *(T)SNY-110 | *TCS-125×110 | 110 | 125 | 9 | 10 | 12 | 110.6 | 4 |
| *(T)SNY-115B | *TCS-130×115 | 115 | 130 | 8.5 | 9.5 | 11.5 | 115.6 | 4 |
| *(T)SNY-125 | *TCS-140×125 | 125 | 140 | 9 | 10 | 12 | 125.7 | 4 |
| *(T)SNY-140 | *TCS-155×140 | 140 | 155 | 9 | 10 | 12 | 140.7 | 4 |
| *(T)SNY-150 | *TCS-165×150 | 150 | 165 | 9 | 10 | 12 | 150.7 | 4 |
| *(T)SNY-160 | *TCS-175×160 | 160 | 175 | 9 | 10 | 12 | 160.7 | 4 |
| *(T)SNY-180 | *TCS-200×180 | 180 | 200 | 12 | 13 | 15.5 | 180.7 | 5.5 |
