- GSJ轴用斯特封-OMS-MR OD系列 XB系列 RS1系列 液压 密封件
订购致电:0755-28545652 手机:13602589346

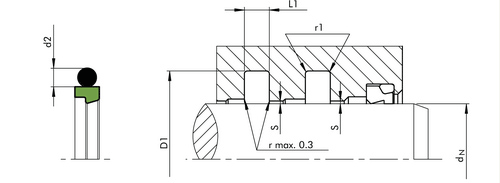

标准材料:密封体：填充聚四氟乙烯F-PTFE或聚氨酯PU.O形圈：丁腈橡胶NBR或氟橡胶FKM.应用范围:液压往复运动系统。在高、中、低压及重载，高频工况下的密封场合非常出色。适合各种行程及范围较广的流体和高温场合，可适用较大的活塞杆间隙。例如用在推土机，挖掘机，锻压机，陶瓷压砖机，轧钢机，伺服阀及机床等。符合GB/T 15242.1-94及GB/T 15242.3-94标准。可参考Parker公司OD系列、Merkel公司OMS-MR、Trelleborg公司RS1系列、AS公司的XB系列标准。特点:良好的动静密封性能,抗挤出性好,尺寸稳定，不受温度影响,不会发生困压，可多只串联安装,对强冲击压力有优异的缓冲作用,摩擦力小，无爬行，粘滞现象,耐腐蚀性强,沟槽结构简单,寿命长,有无润滑均可工作,安装简便
|
速 度 |
压力范围 |
温度范围 |
介 质 |
可供直径范围 |
|
|
0～60MPa |
|
石油基液压油，难燃液压液，环保安全液压液（生物油），水和其它，取决于密封圈材料 |
5 |
|
轴径dN h9 |
沟槽外径 |
沟槽宽度 |
圆角 |
径向间隙 S max |
0形圈截面 |
||||
|
标准规格 |
轻型 |
重型 |
D1 H9 |
L1+0.2 |
r1 |
10 MPa |
20 MPa |
40 MPa |
d2 |
|
3-7.9 |
8-18.9 |
- |
dN+4.9 |
2.2 |
0.4 |
0.3 |
0.2 |
0.15 |
1.78 |
|
8-18.9 |
19-37.9 |
- |
dN+7.3 |
3.2 |
0.6 |
0.4 |
0.25 |
0.15 |
2.62 |
|
19-37.9 |
38-199.9 |
8-18.9 |
dN+10.7 |
4.2 |
1.0 |
0.4 |
0.25 |
0.20 |
3.53 |
|
38-199.9 |
200-255.9 |
19-37.9 |
dN+15.1 |
6.3 |
1.3 |
0.5 |
0.3 |
0.20 |
5.33 |
|
200-255.9 |
256-649.9 |
38-199.9 |
dN+20.5 |
8.1 |
1.8 |
0.6 |
0.35 |
0.25 |
7.00 |
|
256-649.9 |
650-999.9 |
200-255.9 |
dN+24.0 |
8.1 |
1.8 |
0.6 |
0.35 |
0.25 |
7.00 |
|
650-999.9 |
≥1000.0 |
256-649.9 |
dN+27.3 |
9.5 |
2.5 |
0.7 |
0.50 |
0.30 |
8.40 |
|
≥1000.0 |
- |
650-999.9 |
dN+38.0 |
13.8 |
3.0 |
1.0 |
0.70 |
0.60 |
12.00 |
| GSJ 轴用斯特封 >>>>>>>>>>>斯特封的安装方式 | |||||||||||||
| 订货号 | 轴径 | 外径 | 宽度 | 订货号 | 缸径 | 底径 | 宽度 | ||||||
| dN h9 | D1 H9 | L1+0.2 | dN h9 | D1 H9 | L1+0.2 | ||||||||
| GSJ0050 | 5 | 9.9 | 2.2 | GSJ3000 | 300 | 324.0 | 8.1 | ||||||
| GSJ0060 | 6 | 10.9 | 2.2 | GSJ3100 | 310 | 334.0 | 8.1 | ||||||
| GSFJ0080 | 8 | 15.3 | 3.2 | GSJ3200 | 320 | 344.0 | 8.1 | ||||||
| GSJ0100 | 10 | 17.3 | 3.2 | GSJ3300 | 330 | 354.0 | 8.1 | ||||||
| GSJ0120 | 12 | 19.3 | 3.2 | GSJ3400 | 340 | 364.0 | 8.1 | ||||||
| GSJ0140 | 14 | 21.3 | 3.2 | GSJ3500 | 350 | 374.0 | 8.1 | ||||||
| GSJ0150 | 15 | 22.3 | 3.2 | GSJ3600 | 360 | 384.0 | 8.1 | ||||||
| GSJ0160 | 16 | 23.3 | 3.2 | GSJ3650 | 365 | 389.0 | 8.1 | ||||||
| GSJ0180 | 18 | 25.3 | 3.2 | GSJ3700 | 370 | 394.0 | 8.1 | ||||||
| GSJ0200 | 20 | 30.7 | 4.2 | GSJ3750 | 375 | 399.0 | 8.1 | ||||||
| GSJ0220 | 22 | 32.7 | 4.2 | GSJ3800 | 380 | 404.0 | 8.1 | ||||||
| GSJ0250 | 25 | 35.7 | 4.2 | GSJ3900 | 390 | 414.0 | 8.1 | ||||||
| GSJ0280 | 28 | 38.7 | 4.2 | GSJ4000 | 400 | 424.0 | 8.1 | ||||||
| GSJ0300 | 30 | 40.7 | 4.2 | GSJ4100 | 410 | 434.0 | 8.1 | ||||||
| GSJ0320 | 32 | 42.7 | 4.2 | GSJ4200 | 420 | 444.0 | 8.1 | ||||||
| GSJ0350 | 35 | 45.7 | 4.2 | GSJ4300 | 430 | 454.0 | 8.1 | ||||||
| GSJ0360 | 36 | 46.7 | 4.2 | GSJ4400 | 440 | 464.0 | 8.1 | ||||||
| GSJ0380 | 38 | 53.1 | 6.3 | GSJ4500 | 450 | 474.0 | 8.1 | ||||||
| GSJ0400 | 40 | 55.1 | 6.3 | GSJ4600 | 460 | 484.0 | 8.1 | ||||||
| GSJ0420 | 42 | 57.1 | 6.3 | GSJ4700 | 470 | 494.0 | 8.1 | ||||||
| GSJ0450 | 45 | 60.1 | 6.3 | GSJ4800 | 480 | 504.0 | 8.1 | ||||||
| GSJ0480 | 48 | 63.1 | 6.3 | GSJ4900 | 490 | 514.0 | 8.1 | ||||||
| GSJ0500 | 50 | 65.1 | 6.3 | GSJ5000 | 500 | 524.0 | 8.1 | ||||||
| GSJ0520 | 52 | 67.1 | 6.3 | GSJ5100 | 510 | 534.0 | 8.1 | ||||||
| GSJ0550 | 55 | 70.1 | 6.3 | GSJ5200 | 520 | 544.0 | 8.1 | ||||||
| GSJ0560 | 56 | 71.1 | 6.3 | GSJ5300 | 530 | 554.0 | 8.1 | ||||||
| GSJ0600 | 60 | 75.1 | 6.3 | GSJ5400 | 540 | 564.0 | 8.1 | ||||||
| GSJ0630 | 63 | 78.1 | 6.3 | GSJ5500 | 550 | 574.0 | 8.1 | ||||||
| GSJ0650 | 65 | 80.1 | 6.3 | GSJ5600 | 560 | 584.0 | 8.1 | ||||||
| GSJ0700 | 70 | 85.1 | 6.3 | GSJ5700 | 570 | 594.0 | 8.1 | ||||||
| GSJ0750 | 75 | 90.1 | 6.3 | GSJ5800 | 580 | 604.0 | 8.1 | ||||||
| GSJ0800 | 80 | 95.1 | 6.3 | GSJ5900 | 590 | 614.0 | 8.1 | ||||||
| GSJ0850 | 85 | 100.1 | 6.3 | GSJ6000 | 600 | 624.0 | 8.1 | ||||||
| GSJ0900 | 90 | 105.1 | 6.3 | GSJ6100 | 610 | 634.0 | 8.1 | ||||||
| GSJ0950 | 95 | 110.1 | 6.3 | GSJ6200 | 620 | 644.0 | 8.1 | ||||||
| GSJ1000 | 100 | 115.1 | 6.3 | GSJ6300 | 630 | 654.0 | 8.1 | ||||||
| GSJ1050 | 105 | 120.1 | 6.3 | GSJ6400 | 640 | 664.0 | 8.1 | ||||||
| GSJ1100 | 110 | 125.1 | 6.3 | GSJ6500 | 650 | 677.3 | 9.5 | ||||||
| GSJ1150 | 115 | 130.1 | 6.3 | GSJ6560 | 656 | 683.3 | 9.5 | ||||||
| GSJ1200 | 120 | 135.1 | 6.3 | GSJ6600 | 660 | 687.3 | 9.5 | ||||||
| GSJ1250 | 125 | 140.1 | 6.3 | GSJ6800 | 680 | 707.3 | 9.5 | ||||||
| GSJ1300 | 130 | 145.1 | 6.3 | GSJ6850 | 685 | 712.3 | 9.5 | ||||||
| GSJ1350 | 135 | 150.1 | 6.3 | GSJ7000 | 700 | 727.3 | 9.5 | ||||||
| GSJ1400 | 140 | 155.1 | 6.3 | GSJ7100 | 710 | 737.3 | 9.5 | ||||||
| GSJ1450 | 145 | 160.1 | 6.3 | GSJ7300 | 730 | 757.3 | 9.5 | ||||||
| GSJ1500 | 150 | 165.1 | 6.3 | GSJ7600 | 760 | 787.3 | 9.5 | ||||||
| GSJ1550 | 155 | 170.1 | 6.3 | GSJ7800 | 780 | 807.3 | 9.5 | ||||||
| GSJ1600 | 160 | 175.1 | 6.3 | GSJ7900 | 790 | 817.3 | 9.5 | ||||||
| GSJ1600/1 | 160 | 180.5 | 8.1 | GSJ8000 | 800 | 827.3 | 9.5 | ||||||
| GSJ1650 | 165 | 180.1 | 6.3 | GSJ8100 | 810 | 837.3 | 9.5 | ||||||
| GSJ1700 | 170 | 185.1 | 6.3 | GSJ8200 | 820 | 847.3 | 9.5 | ||||||
| GSJ1750 | 175 | 190.1 | 6.3 | GSJ8300 | 830 | 857.3 | 9.5 | ||||||
| GSJ1800 | 180 | 195.1 | 6.3 | GSJ8500 | 850 | 877.3 | 9.5 | ||||||
| GSJ1800/1 | 180 | 200.5 | 8.1 | GSJ8700 | 870 | 897.3 | 9.5 | ||||||
| GSJ1850 | 185 | 200.1 | 6.3 | GSJ8800 | 880 | 907.3 | 9.5 | ||||||
| GSJ1900 | 190 | 205.1 | 6.3 | GSJ8850 | 885 | 912.3 | 9.5 | ||||||
| GSJ1950 | 195 | 210.1 | 6.3 | GSJ8900 | 890 | 917.3 | 9.5 | ||||||
| GSJ2000/1 | 200 | 215.1 | 6.3 | GSJ9000 | 900 | 927.3 | 9.5 | ||||||
| GSJ2000 | 200 | 220.5 | 8.1 | GSJ9300 | 930 | 957.3 | 9.5 | ||||||
| GSJ2050 | 205 | 225.5 | 8.1 | GSJ9550 | 955 | 982.3 | 9.5 | ||||||
| GSJ2100 | 210 | 230.5 | 8.1 | GSJ10000 | 1000 | 1038.0 | 13.8 | ||||||
| GSJ2150 | 215 | 235.5 | 8.1 | GSJ10350 | 1035 | 1073.0 | 13.8 | ||||||
| GSJ2200 | 220 | 240.5 | 8.1 | GSJ10400 | 1040 | 1078.0 | 13.8 | ||||||
| GSJ2250 | 225 | 245.5 | 8.1 | GSJ10500/1 | 1050 | 1077.3 | 9.5 | ||||||
| GSJ2300 | 230 | 250.5 | 8.1 | GSJ10500 | 1050 | 1088.0 | 13.8 | ||||||
| GSJ2350 | 235 | 255.5 | 8.1 | GSJ11000 | 1100 | 1138.0 | 13.8 | ||||||
| GSJ2400 | 240 | 260.5 | 8.1 | GSJ11200 | 1120 | 1158.0 | 13.8 | ||||||
| GSJ2450 | 245 | 265.5 | 8.1 | GSJ12000 | 1200 | 1238.0 | 13.8 | ||||||
| GSJ2500 | 250 | 270.5 | 8.1 | GSJ13000/1 | 1300 | 1327.3 | 9.5 | ||||||
| GSJ2600 | 260 | 284.0 | 8.1 | GSJ13300 | 1330 | 1368.0 | 13.8 | ||||||
| GSJ2700 | 270 | 294.0 | 8.1 | GSJ15000/1 | 1500 | 1527.3 | 9.5 | ||||||
| GSJ2800 | 280 | 304.0 | 8.1 | GSJ15000 | 1500 | 1538.0 | 13.8 | ||||||
| GSJ2850 | 285 | 309.0 | 8.1 | GSJ20000 | 2000 | 2038.0 | 13.8 | ||||||
| GSJ2900 | 290 | 314.0 | 8.1 | ||||||||||
| GSJ2950 | 295 | 319.0 | 8.1 | ||||||||||
