- APH 气动密封件-NOK 密封件 小提示：CTRL+F 可直接查到规格
订购致电:0755-28545652 手机:13602589346

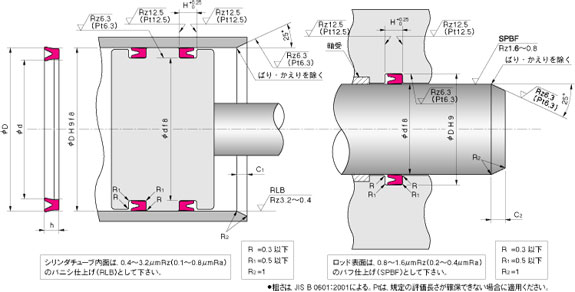

| 密封件公称尺寸 |
腔体尺寸 |
NOK零件号 |
| d |
D |
h |
φd |
φD |
H |
C1 |
C2 |
| 3 |
6 |
2.1 |
3 |
6 |
2.5 |
2 |
1.5 |
CU2968Z3 |
| 4 |
7 |
2.1 |
4 |
7 |
2.5 |
2 |
1.5 |
CU2637Z1 |
| 5 |
8 |
2.1 |
5 |
8 |
2.5 |
2 |
1.5 |
CU3221Z1 |
| 6 |
9 |
2.1 |
6 |
9 |
2.5 |
2 |
1.5 |
CU3125Z2 |
| 7 |
10 |
2.1 |
7 |
10 |
2.5 |
2 |
1.5 |
CU3013Z1 |
| 8 |
11 |
2.1 |
8 |
11 |
2.5 |
2 |
1.5 |
CU3144Z1 |
| 9 |
12 |
2.1 |
9 |
12 |
2.5 |
2 |
1.5 |
CU3421Z0 |
| 10 |
13 |
2.1 |
10 |
13 |
2.5 |
2 |
1.5 |
CU3149Z1 |
| 10 |
14 |
2.8 |
10 |
14 |
3.2 |
2.5 |
2 |
CU3460Z0 |
| 11 |
15 |
2.8 |
11 |
15 |
3.2 |
2.5 |
2 |
CU3422Z0 |
| 11.2 |
15.2 |
2.8 |
11.2 |
15.2 |
3.2 |
2.5 |
2 |
CU3461Z0 |
| 12 |
16 |
2.8 |
12 |
16 |
3.2 |
2.5 |
2 |
CU3168Z1 |
| 12.5 |
16.5 |
2.8 |
12.5 |
16.5 |
3.2 |
2.5 |
2 |
CU3462Z0 |
| 14 |
18 |
2.8 |
14 |
18 |
3.2 |
2.5 |
2 |
CU3423Z0 |
| 15 |
19 |
2.8 |
15 |
19 |
3.2 |
2.5 |
2 |
CU3424Z0 |
| 16 |
20 |
2.8 |
16 |
20 |
3.2 |
2.5 |
2 |
CU3425Z0 |
| 18 |
22 |
2.8 |
18 |
22 |
3.2 |
2.5 |
2 |
CU3282Z1 |
| 20 |
24 |
2.8 |
20 |
24 |
3.2 |
2.5 |
2 |
CU3426Z0 |
| 21 |
25 |
2.8 |
21 |
25 |
3.2 |
2.5 |
2 |
CU3427Z0 |
| 22 |
26 |
2.8 |
22 |
26 |
3.2 |
2.5 |
2 |
CU3463Z0 |
| 24 |
30 |
4.2 |
24 |
30 |
4.7 |
3 |
3 |
CU2341Z0 |
| 34 |
40 |
4.2 |
34 |
40 |
4.7 |
3 |
3 |
CU3428Z0 |
|
